Features
★ The meter uses 60 KHz (aviation industry standard) to inspirit.
★ The testing data can be read in two kinds of unit: %IACS and MS/m.
★ Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
★ It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
★ The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.
★ It can hold measurement data.
Applications
★ Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
★ In the aerospace and automotive industries,monitor the process of heat treatment, the strength and hardness of aluminum alloy.
★ Test the conductivity aluminum when it has not been oxidized.
★ Test the purity grade of materials.
★ Test materials resistivity.
★ Material Thermal Performance analysis.
Technical parameters
NAME |
CONTENT |
Measurement technology |
Eddy current |
Operating frequency |
60KHz ,120 KHz |
Display screen |
Monochrome |
L*B*H |
180*75*30 mm |
Instrument case |
Anti-intense impact,water-proofing polyester. |
Weight |
290g |
Power supply |
High capacity, high performance lithium polymer battery |
Measuring range |
6.9%IACS—110%IACS(4.0 MS/m -64MS/m) |
Distinguishing rate |
0.1% IACS |
Measuring accuracy |
0°C to 50°C
0~23%IACS :±0.1%IACS
23%IACS~110%IACS :±0.3%IACS
|
Temperature compensation |
Automatic compensation to the value of 20 ℃. |
Normal work environment |
Relative humidity |
0~95% |
Operating temperature |
0℃~50℃ |
Language |
English |
Fitting |

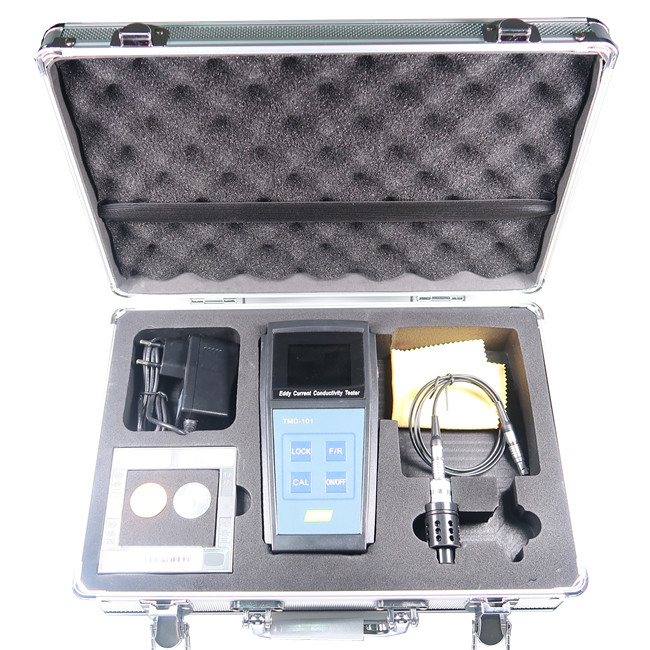

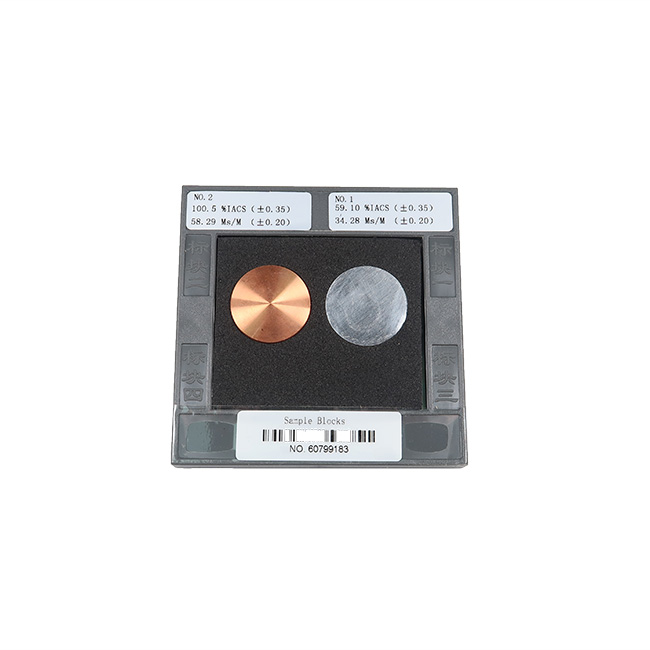

Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter. |

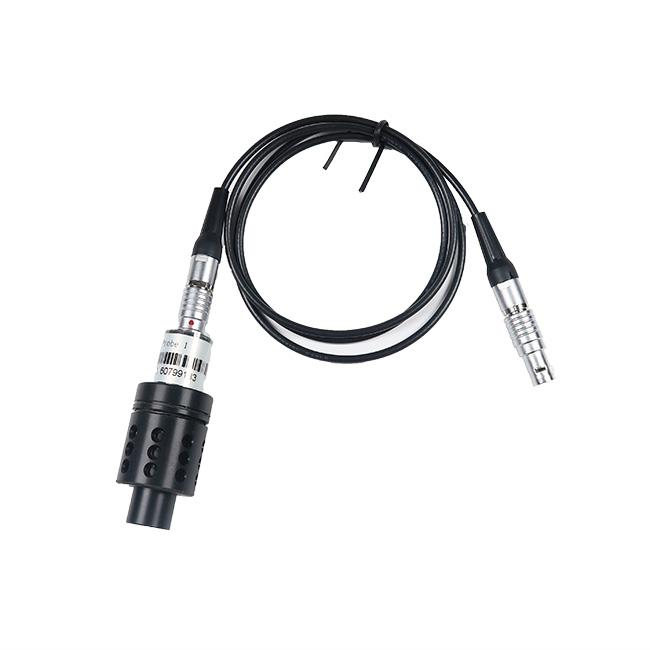

Probe |
Diameter:12.7mm
(Applicable to minimum measuring area diameter at 60KHz is10mm.)
|
Note: The conductivity measurements automatically rectified to the value at 20℃.
