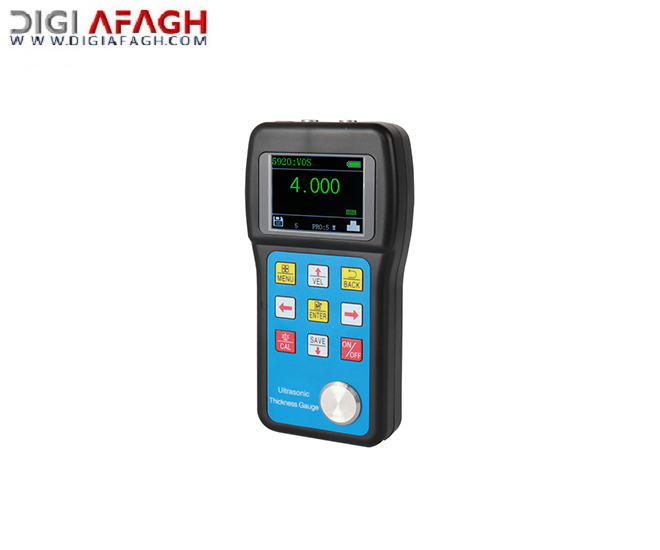

ضخامت سنج التراسونیک با امواج التراسونیک برای اندازه گیری ضخامت هر ماده ای که امواج مافوق صوت می تواند در آن منتقل شده و از طرف دیگر منعکس شود، قابل استفاده است.
گیج می تواند اندازه گیری سریع و دقیق را برای قطعات مختلف کار مانند ورق های تخته و قطعات پردازشی ارائه دهد. یکی دیگر از کاربردهای مهم گیج نظارت بر انواع لوله ها و مخازن تحت فشار در تجهیزات تولید و نظارت بر درجه نازک شدن در حین استفاده است. می تواند به طور گسترده ای در نفت، مواد شیمیایی، متالورژی، کشتیرانی، هوا فضا، هوانوردی و سایر زمینه ها استفاده شود.
Technical Specification:
Display：128*64 LCD with LED backlight;
Measuring Range：(0.75~600)mm（Steel）
Velocity Range：(1000~9999) m/s;
Resolution：0.001mm
Measuring accuracy：±（0.5%H+0.04mm);H is thickness value;
Measurement cycle：Single point measurement 6 times/per；
Calibration Function: Zero calibration and two-point calibration
Sound-light alarm function
Lower limit for steel pipes:5MHz probe: F20mm*3.0mm (F0.8´ 0.12 inch)
7MHz probe: F15mm*2.0mm (F0.6´ 0.08 inch)
Storage：3000 values of saved data
Communication Port:RS232
Language:English and Chinese
Power Source:2pcs 1.5V AA size
Working Time:more than 50 hours (LED backlight off).

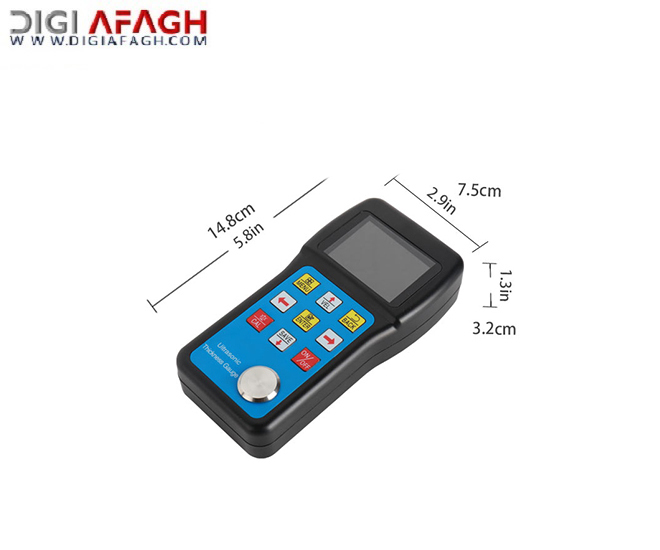

Outline Dimensions:145mm*74mm*32 mm
Weight：245g
Main Functions:
Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
Can collocate variety different frequencies,wafer sizes of probes；
SoundVelocityCalibration function as a known thickness;
Coupling status indicator showing the coupling status;
EL backlight, and convenience to use under dark environment；
Have the battery indicator function, can real-time display the remaining power
Auto sleep and auto power off function to conserve battery life；
Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.
Primary Theory:

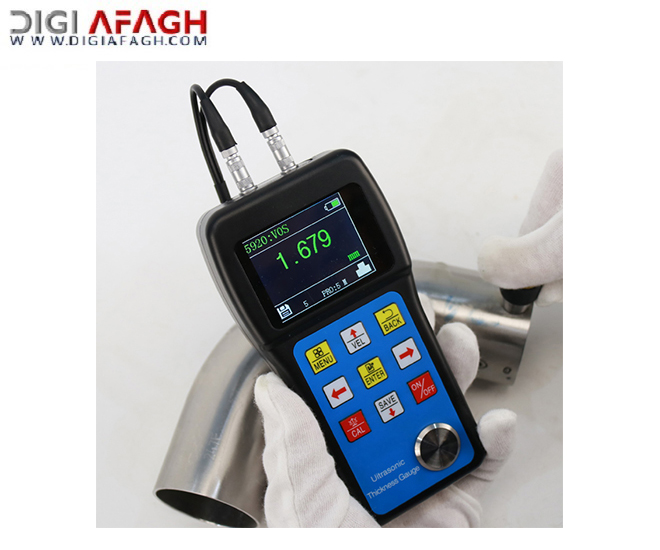

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material,reflect form the back or inside surface, and be returned to the transducer.The measured two-way transit time is divided by two to account for the down-and-back travel path,and then multiplied by the velocity of sound in the material.
Instrument Configuration:
| |
No.
|
Name
|
QTY
|
Notes
|
|
Standard Configuration
|
1
|
Main Body
|
1 set
|
|
|
2
|
Standard Probe（5MHz,D10mm）
|
1 pc
|
|
|
3
|
Couplant
|
1 pc
|
|
|
4
|
ABS Case
|
1 pc
|
|
|
5
|
Product Certificate
|
1 pc
|
|
|
6
|
Warranty Card
|
1 pc
|
|
|
7
|
Manual
|
1 pc
|
|
|
8
|
1.5V AA size
|
2 pcs
|
|
|
Optional
Accessories
|
9
|
Large diameter probe（2.5MHz）
|
|
|
|
10
|
Large range probe（2MHz）
|
|
|
|
11
|
Micro-diameter probe（7MHz）
|
|
|
|
12
|
High temperature probe（5MHz）
|
|
|
|
13
|
High temperature couplant
|
|
|
The choice to probes：
|
Name
|
Model
|
Frequency
|
Diameter
|
Testing Range
|
Min. area f
|
Application
|
|
Large diameter probe
|
N02
|
2.5
|
14mm
|
3.0mm～400.0mm（steel）
Below 40mm(Gray Iron HT200)
|
20mm
|
casting work piece
|
|
Large range probe
|
N02
|
2
|
14mm
|
3.0mm～600.0mm（steel）
Below 100mm(Gray Iron HT200)
|
20mm
|
casting work piece
|
|
Standard probe
|
N05/90°
|
5
|
10mm
|
1.0mm～230.0mm（steel）
|
Φ20mm*3.0mm
|
General bent probe
|
|
Micro-diameter probe
|
N07
|
7
|
6mm
|
0.28mm～80.0mm（steel）
|
Φ15mm*2.0mm
|
thin work piece
|
|
HighTemperature Probe
|
HT5
|
5
|
14mm
|
3～200mm （steel）
|
30mm
|
