Portable Hardness Tester Delicate durable metal shell Thl280

Portable Hardness Tester Delicate durable metal shell Thl280

0 دیدگاه

برند : TMTECH COMPANY
دسته بندی : Hardness Testers

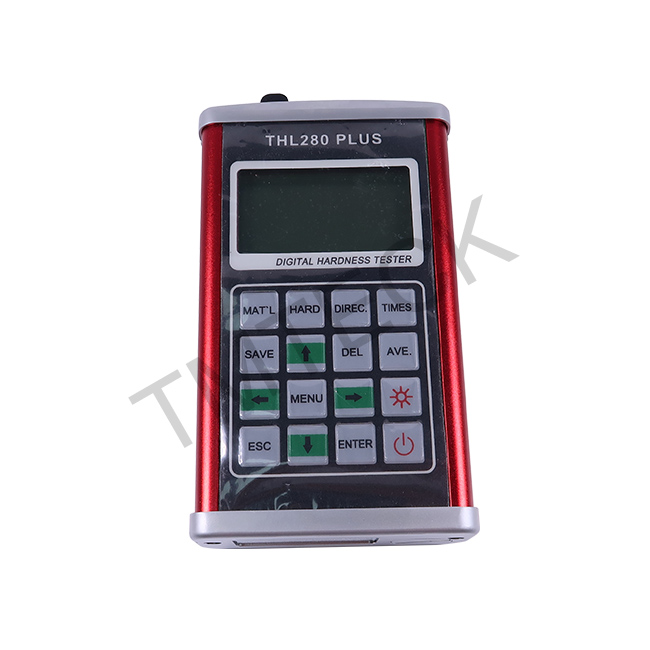

Thl280 Plus 128x64 LCD Tmteck Portable Hardness Tester Delicate durable metal shell an updated version of THL210, More durable metal housing Powerful PC Software available and USB 2.0 interface & with the USB Protective Membrane

دیجی آفاق | شبکه هوشمند خرید و فروش کالا به صورت آنلاین: شرکت tmteck

گارانتی اصالت و سلامت فیزیکی کالا

موجود در انبار دیجی آفاق | شبکه هوشمند خرید و فروش کالا به صورت آنلاین
ارسال توسط الوپیک

تعداد	قیمت
قیمت پایه(دلار)	82,824,000 تومان
1 - 9	82,824,000 تومان
10 - 99	68,544,000 تومان
100 - 999	68,544,000 تومان
1000 <	68,544,000 تومان
تعداد	قیمت

تعداد :

افزودن به سبد خرید

فروشنده	موجودی محصول	قیمت پایه(دلار)	افزودن به سبد خرید
شرکت tmteck	موجود در انبار	82,824,000 تومان	افزودن به سبد خرید
فروشنده	موجودی محصول	قیمت پایه(دلار)	افزودن به سبد خرید

نقد و بررسی

Features

LCD display of 128×64 matrix with back-light, showing all functions and parameters.
Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS).
English displaying and easy and convenient menu operation.
Powerful PC Software available and USB 2.0 interface & with the USB Protective Membrane.
7 types of Impact Device optional, which don't need to be recalibrated when changing them.
Memory of 600 groups data(impact times:32～1).Lower limit setting and sound alarm.
Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.
Printer be separated from main unit and copies of testing results can be printed as required.
AA battery can easy change and transport.
Inbuilt function of Software Calibration.
Standard according including : national standard: GB/T 17394.1-2014; GB/T1172-1999
EU standard: EN ISO 16859-2016
ASTM standard:ASTM A956(2012)

Specification

Hardness scale	HL, HB, HRB, HRC, HRA, HV, HS
Memory	48～600 groups (impact times: 32～1)
Measuring range	HLD(170～960)See below table 1 and table 2
Accuracy	±4HLD (760±30HLD) error of displayed value
	4HLD (760±30HLD) repeatability of displayed value
Standard Impact Device	D
Optional Impact Devices	DC/D+15/G/C/DL
Max. Workpiece Hardness	996HV(For Impact Devices D/DC/DL/D+15/C)
	646HB(For Impact Device G)
Min. Radius of Workpiece	Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece weight	2~5kg on stable support
Min. Workpiece thickness	5mm (Impact Devices D/DC/DL/D+15)
	1mm (Impact Device C)
	10mm (Impact Device G)
Min. thickness of hardened surface	0.8mm
Power	AA battery
Continuous Working time	approx. 100 h (no back light off)
Charging time	2-3.5 h
Operating temperature	0~40℃
Relative humidity	≤90%
Overall dimensions	1256731mm (main unit)

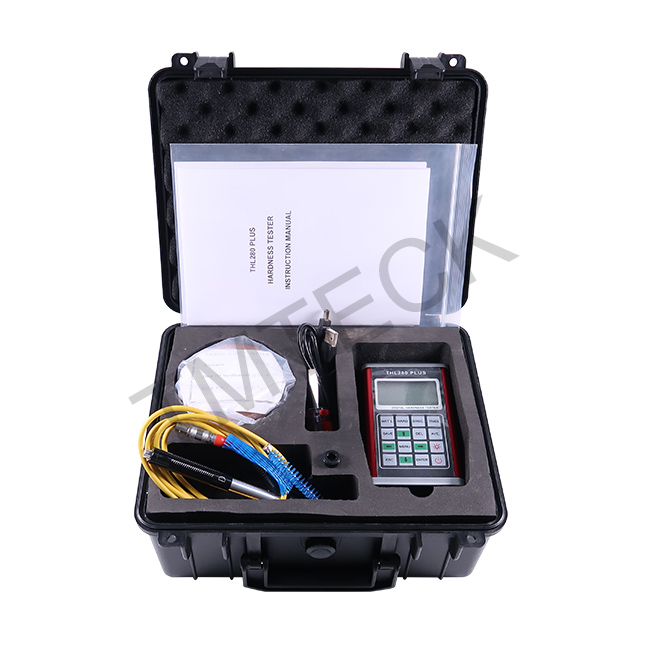

Standard Configuration

Seq	Name	Qty	Remark
1	Main Unit	1	Standard configuration
2	Impact Device Type D	1	Standard configuration
3	Test Block Type D	1	Standard configuration
4	Cleaning Brush	1	Standard configuration
5	Supporting Ring	1	Standard configuration
6	Communication Cable	1	Standard configuration
7	Manual	1	Standard configuration
8	Carrying Case	1	Standard configuration
9	DataPro Software(USB)	1	Standard configuration
10	Battery Case Tool	1	Standard configuration
11	Mini-printer	1	Optional configuration
